Products
G4/D4 GFRP rebar SMINBar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 4 |
| Actual diameter (mm) | 4.5 |
| Minimum guaranteed ultimate tensile force (kN) | 11 |
| Actual average tensile force (kN) | 27 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.025 |
| Meters in 1 tonne | 40 032 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |

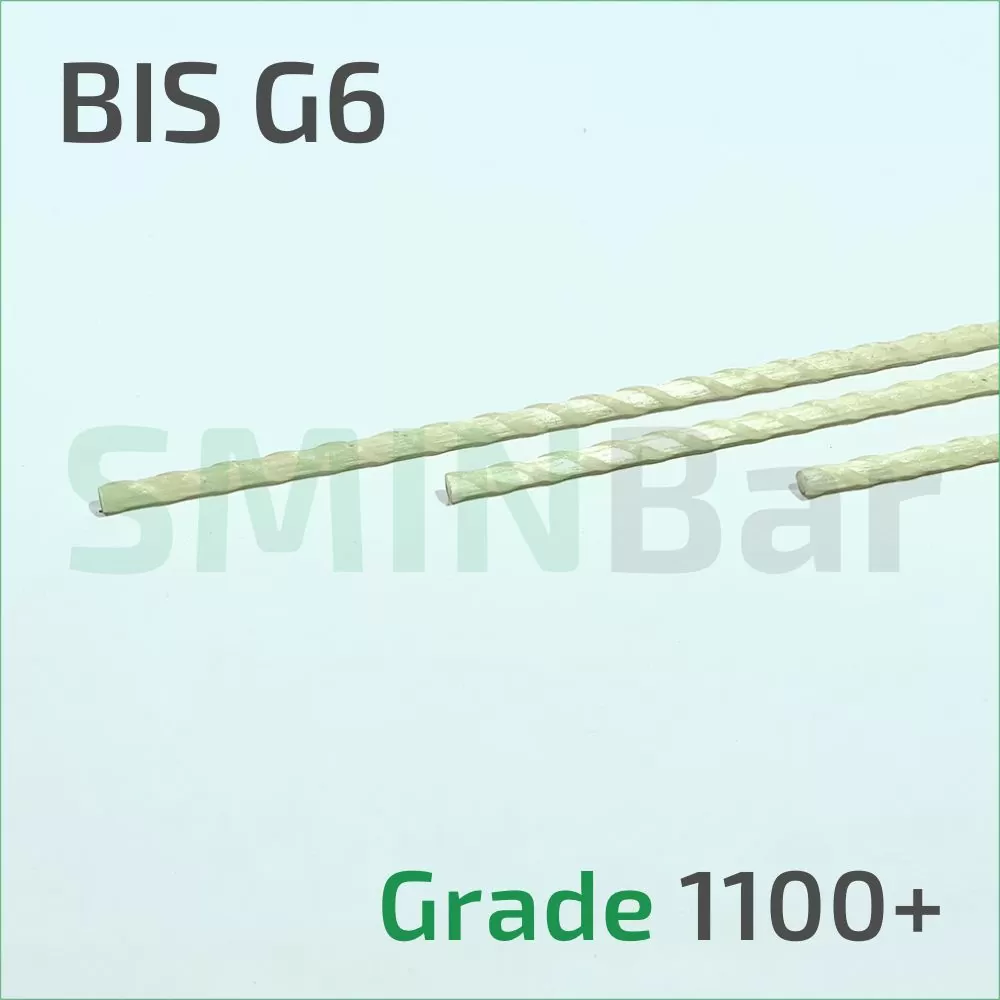

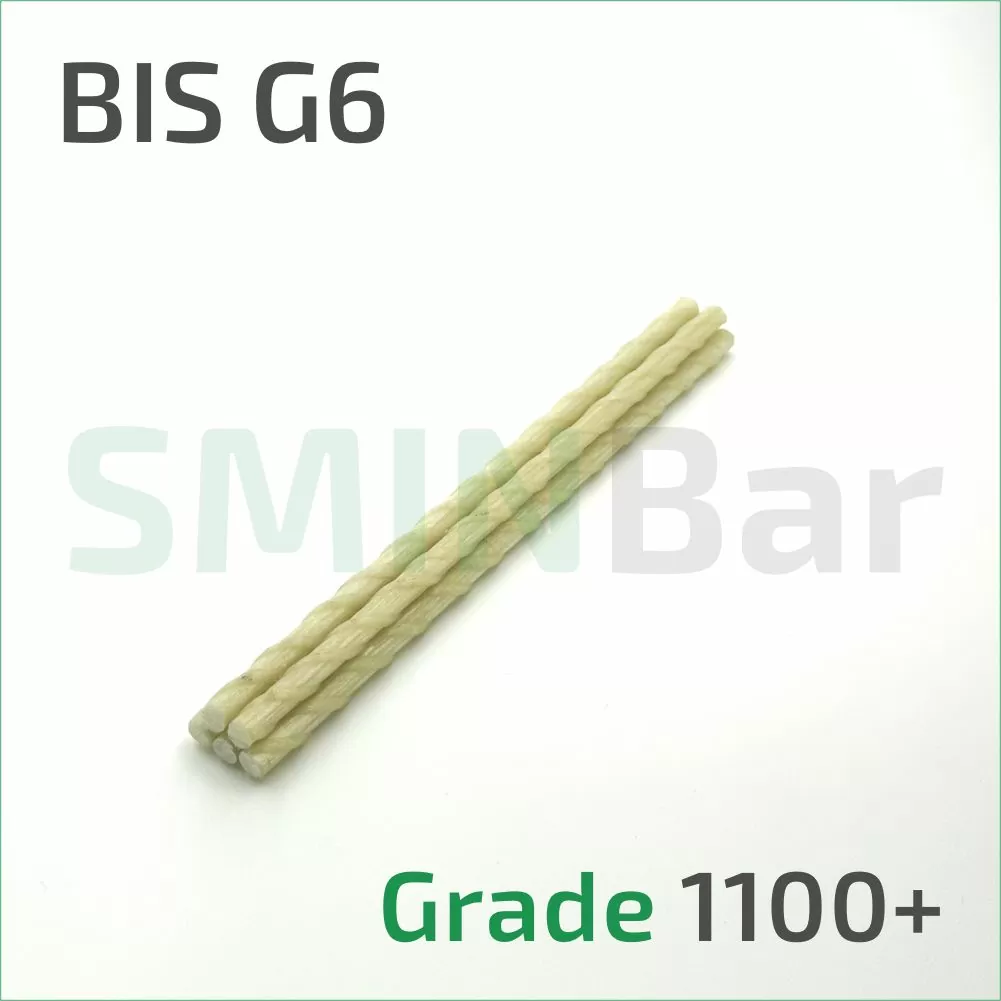

G6/D6 GFRP Round Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 6 |
| Actual diameter (mm) | 6.5 |
| Minimum guaranteed ultimate tensile force (kN) | 23 |
| Actual average tensile force (kN) | 43.15 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.056 |
| Meters in 1 tonne | 17 733 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |

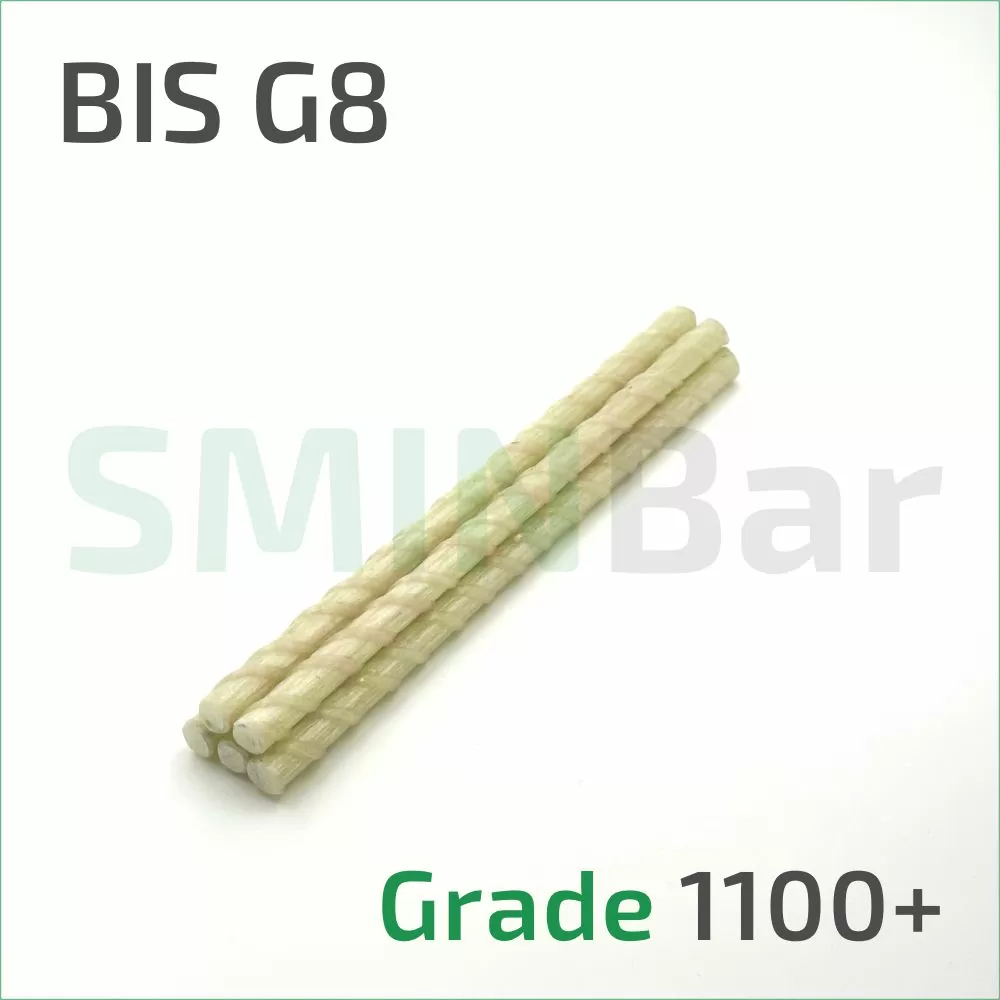

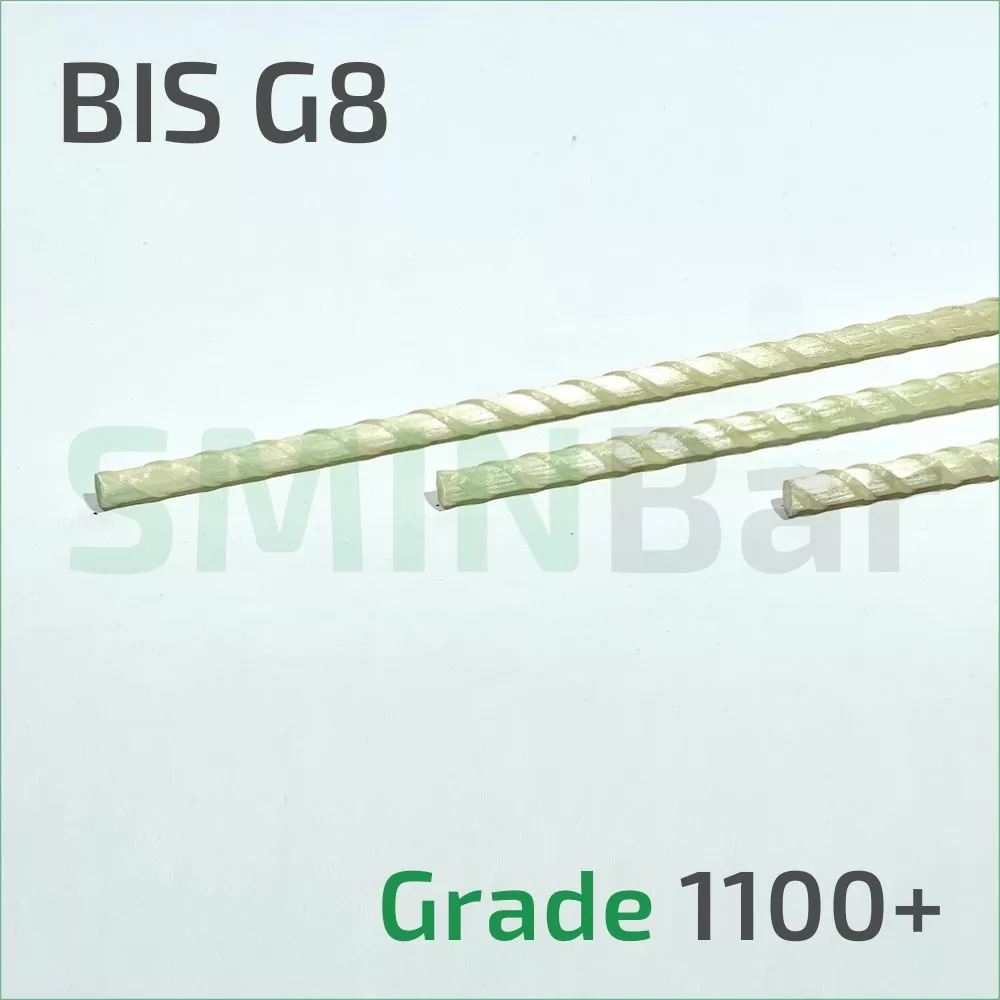

G8/D8 GFRP rebar SMINBar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 8 |
| Actual diameter (mm) | 8.5 |
| Minimum guaranteed ultimate tensile force (kN) | 40 |
| Actual average tensile force (kN) | 62.75 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.100 |
| Meters in 1 tonne | 10 036 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
-
