Products
G4/D4 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 4 |
| Actual diameter (mm) | 4.5 |
| Minimum guaranteed ultimate tensile force (kN) | 11 |
| Actual average tensile force (kN) | 27 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.025 |
| Meters in 1 tonne | 40 032 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |

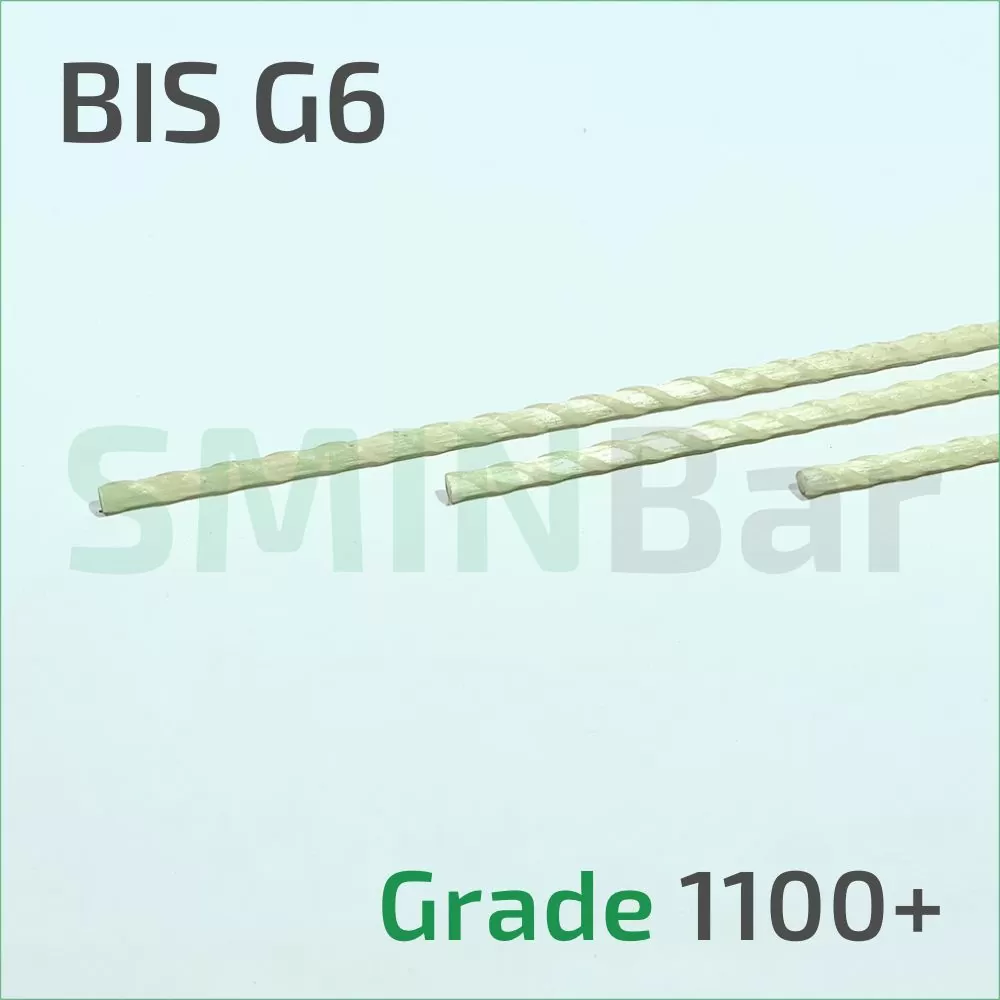

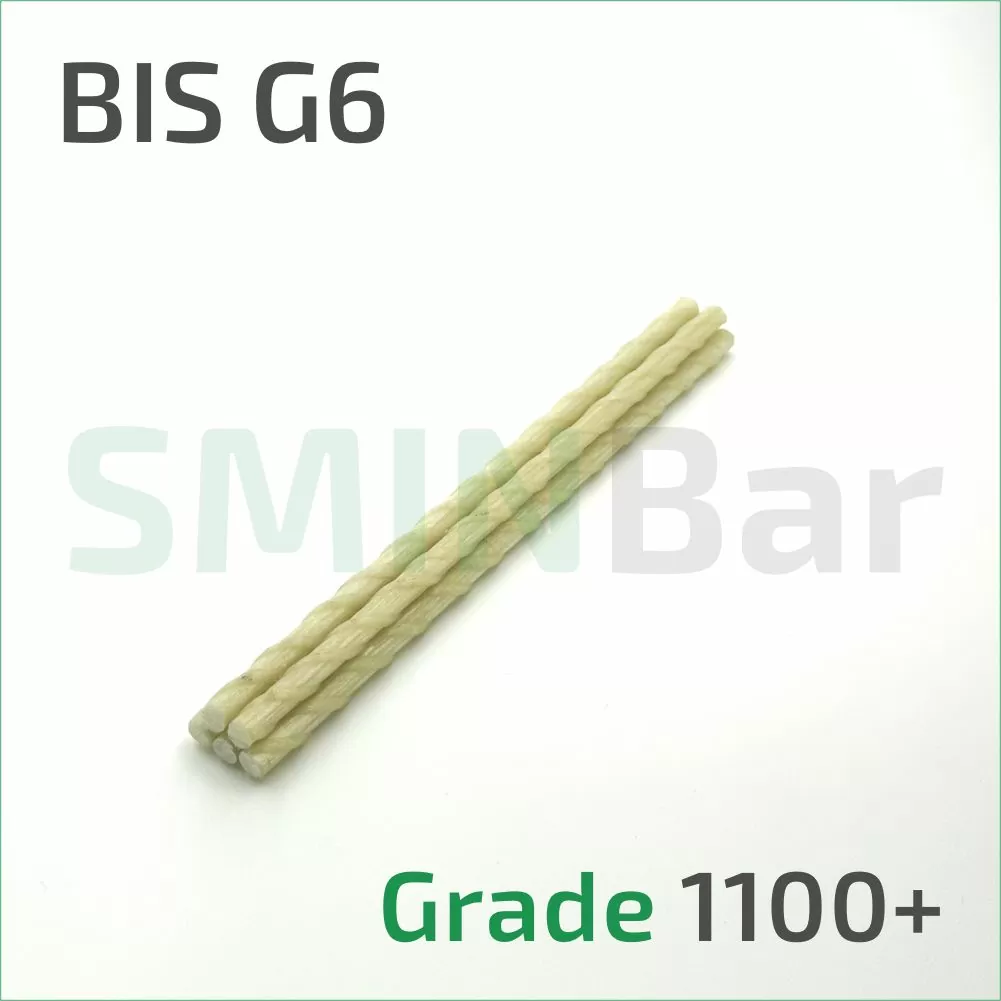

G6/D6 Flujo GFRP Round Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 6 |
| Actual diameter (mm) | 6.5 |
| Minimum guaranteed ultimate tensile force (kN) | 23 |
| Actual average tensile force (kN) | 43.15 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.056 |
| Meters in 1 tonne | 17 733 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |

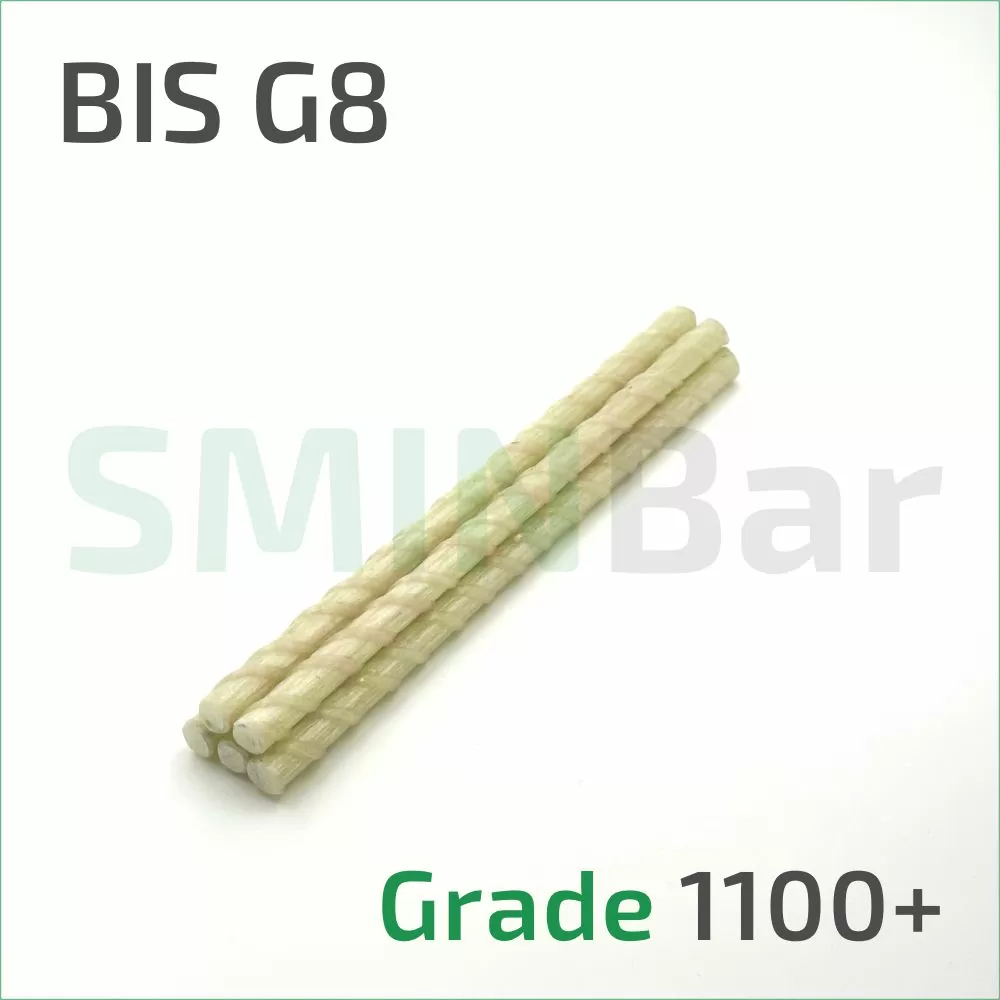

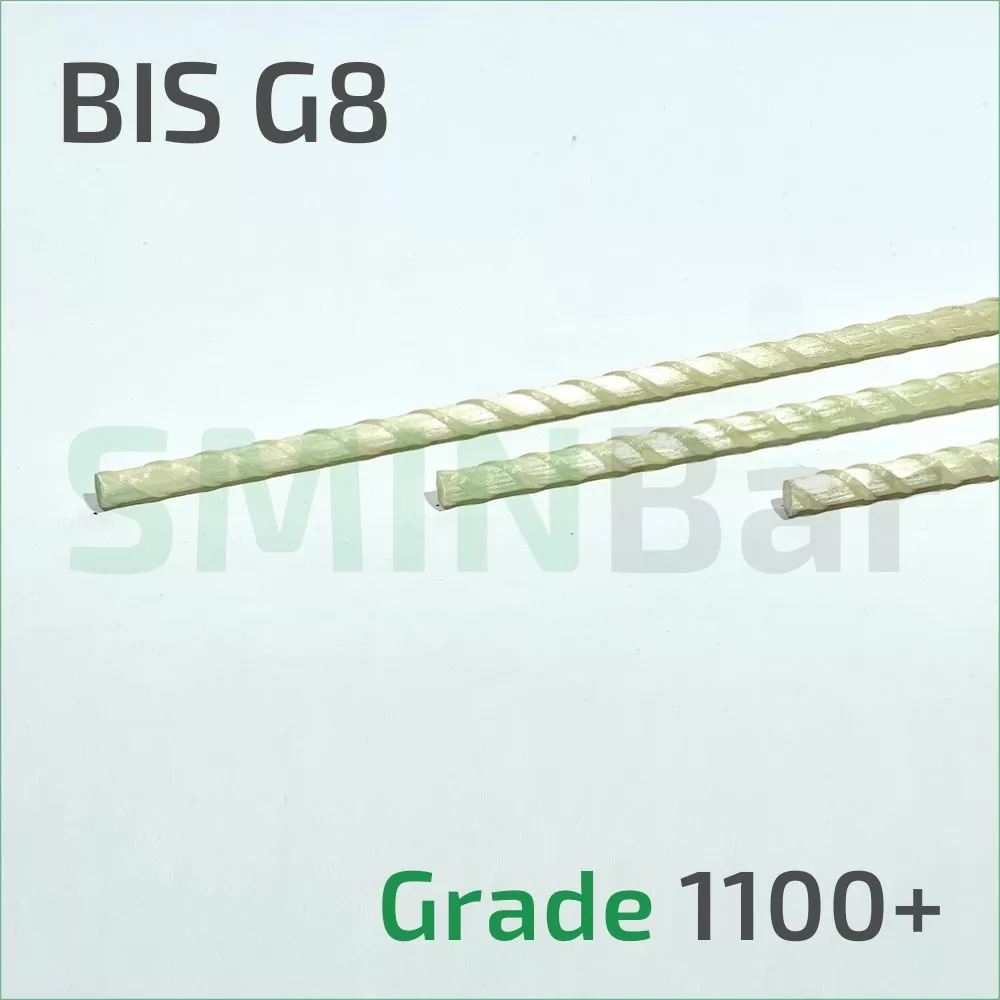

G8/D8 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 8 |
| Actual diameter (mm) | 8.5 |
| Minimum guaranteed ultimate tensile force (kN) | 40 |
| Actual average tensile force (kN) | 62.75 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.100 |
| Meters in 1 tonne | 10 036 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G10/D10 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 10 |
| Actual diameter (mm) | 10.5 |
| Minimum guaranteed ultimate tensile force (kN) | 60 |
| Actual average tensile force (kN) | 94.35 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.150 |
| Meters in 1 tonne | 6 636 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G12/D12 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 12 |
| Actual diameter (mm) | 12.5 |
| Minimum guaranteed ultimate tensile force (kN) | 80 |
| Actual average tensile force (kN) | 123.95 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.221 |
| Meters in 1 tonne | 4 530 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G16/D16 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 16 |
| Actual diameter (mm) | 16.5 |
| Minimum guaranteed ultimate tensile force (kN) | 130 |
| Actual average tensile force (kN) | 203.26 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.386 |
| Meters in 1 tonne | 2 586 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G20/D20 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 20 |
| Actual diameter (mm) | 21 |
| Minimum guaranteed ultimate tensile force (kN) | 190 |
| Actual average tensile force (kN) | 297.07 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.586 |
| Meters in 1 tonne | 1 704 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G25/D25 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 25 |
| Actual diameter (mm) | 26 |
| Minimum guaranteed ultimate tensile force (kN) | 270 |
| Actual average tensile force (kN) | 422.16 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 0.586 |
| Meters in 1 tonne | 1 704 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
G32/D32 Flujo GFRP Rebar
| Material grade (MPa) | 1100+ |
| Nominal diameter (mm) | 32 |
| Actual diameter (mm) | 34 |
| Minimum guaranteed ultimate tensile force (kN) | 420 |
| Actual average tensile force (kN) | 656.69 |
| Material | Epoxy, ECR-Glass |
| Periodic profile | double rib |
| Weight per 1 running meter (kg) | 1.386 |
| Meters in 1 tonne | 721 |
| Approvals | IS 18256 : 2023, IRC: 137-2022 |
| Standard length (m) | 12 |
| Custom length | by request |
-
