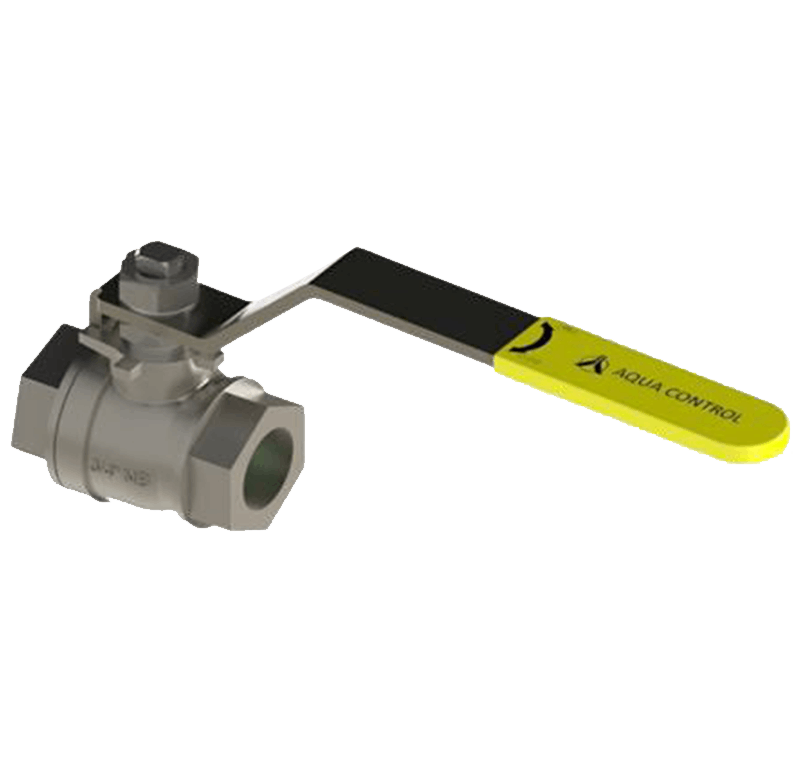

Ball Valves - Single Piece
Complies to BS EN ISO 17292 (BS 5351)
Sizes: 15mm (1/2”) to 50mm (2”)
Type: Full Bore
Rating: Class 150
Materials: WCB, CF8M, CF8 etc.
Seats: PTFE, RPTFE, PEEK, Metal
Ends: Screwed (BSP / BSPT / NPT)
Operation: Manual, Gear, Actuated

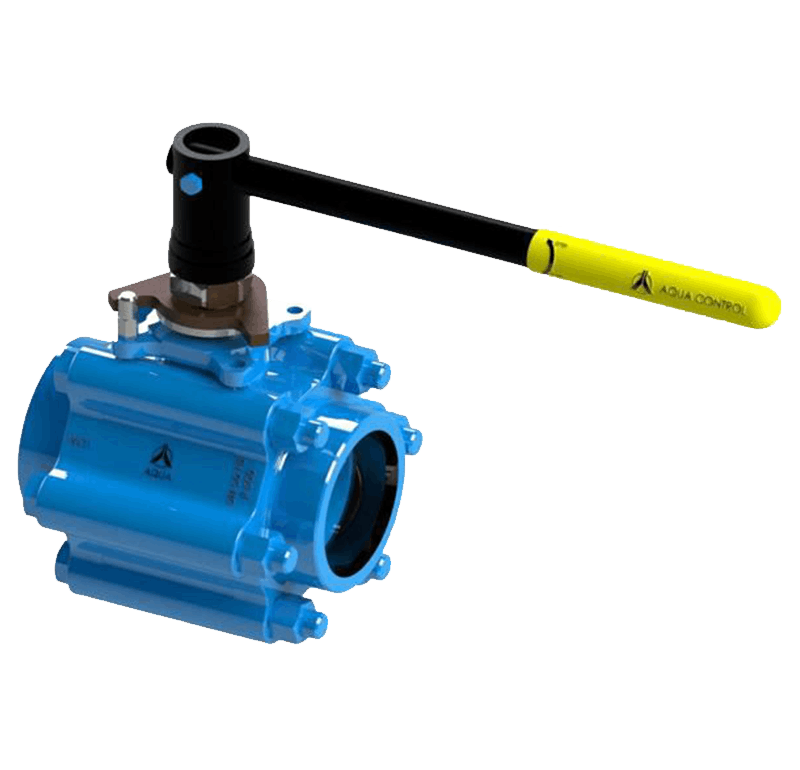

Ball Valves - Three Piece
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 15mm (1/2”) to 50mm (2”)
Type: Regular Bore & Full Bore
Rating: Class 150, 600 & 800
Materials: A105, F304, F316, WCB, CF8, CF8M, CN7M etc.
Seats: PTFE, RPTFE, Devlon, Nylon, PEEK, Metal.
Ends: Screwed, Socket Weld, Butt Weld
Specials: Locking Arrangement, Nipple Extension, Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

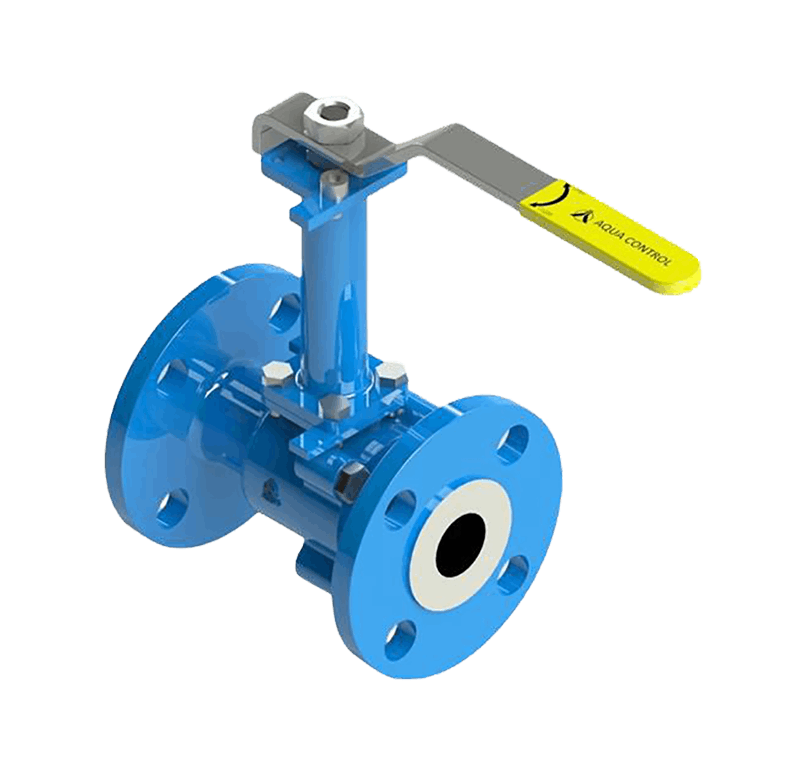

Ball Valves - Stem Extension
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 50mm (2”) to 600mm (24”)
Type: Full Bore
Rating: Class 150
Materials: WCB, CF8M, CF8 etc.
Seats: PTFE, RPTFE, PEEK, Metal
Ends: Screwed (BSP / BSPT / NPT)
Operation: Manual, Gear, Actuated

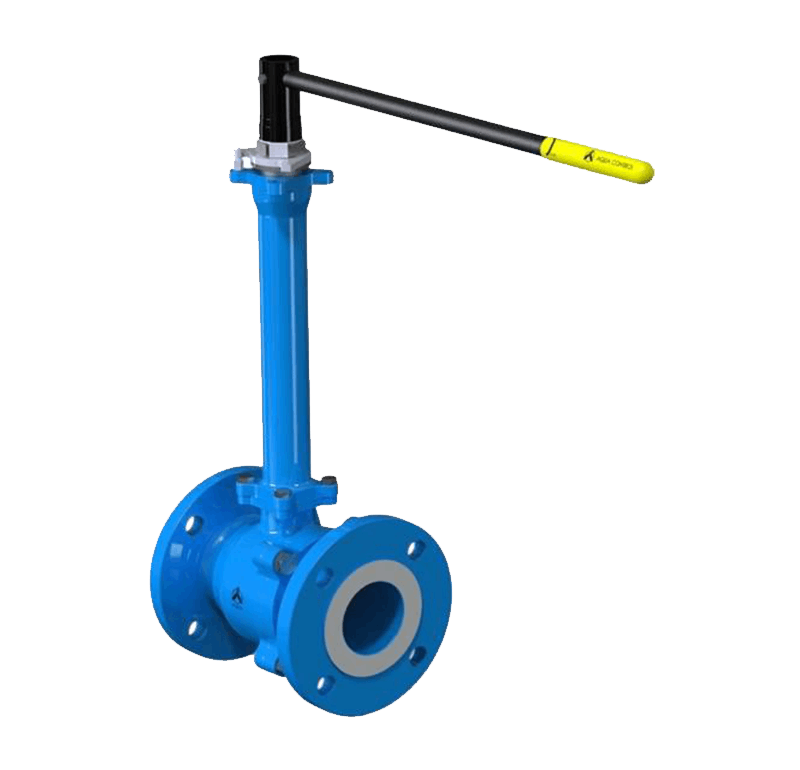

Ball Valves - Cryogenic Application
Complies to BS EN ISO 17292 (BS 5351), API 6D, BS 6364/BS EN ISO 28921, API 608
Sizes: 50mm (2”) to 600mm (24”)
Type: Regular Bore & Full Bore
Rating: Class 150 & 300
Materials: LCB, CF8, CF8M, CF3, CF3M etc.
Seats: PTFE, Reinforced PTFE, Metal, PCTFE.
Ends: Flanged, Butt Weld
Specials: Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

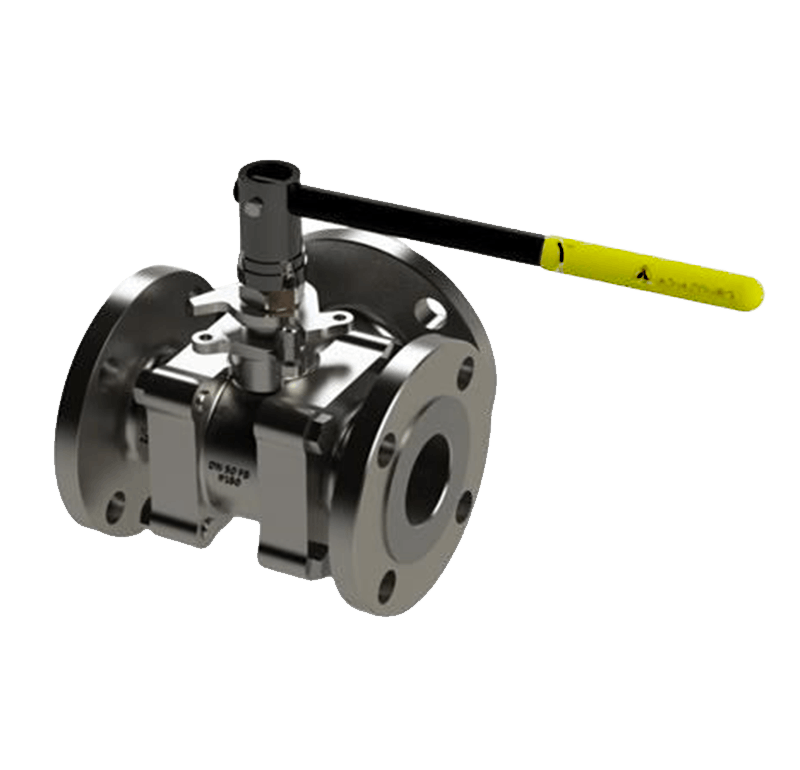

Ball Valves - Three Way
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 15mm (1/2”) to 200mm (8”)
Type: Regular Bore & Full Bore
Rating: Class 150 & 300
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, DUPLEX SS Monel, CN7M, H-B, H-C etc.
Seats: PTFE, RPTFE, PEEK, Metal
Ends: Flanged
Specials: L-Port, T-Port, 2Seated, 3Seated, Locking Arrangement, Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

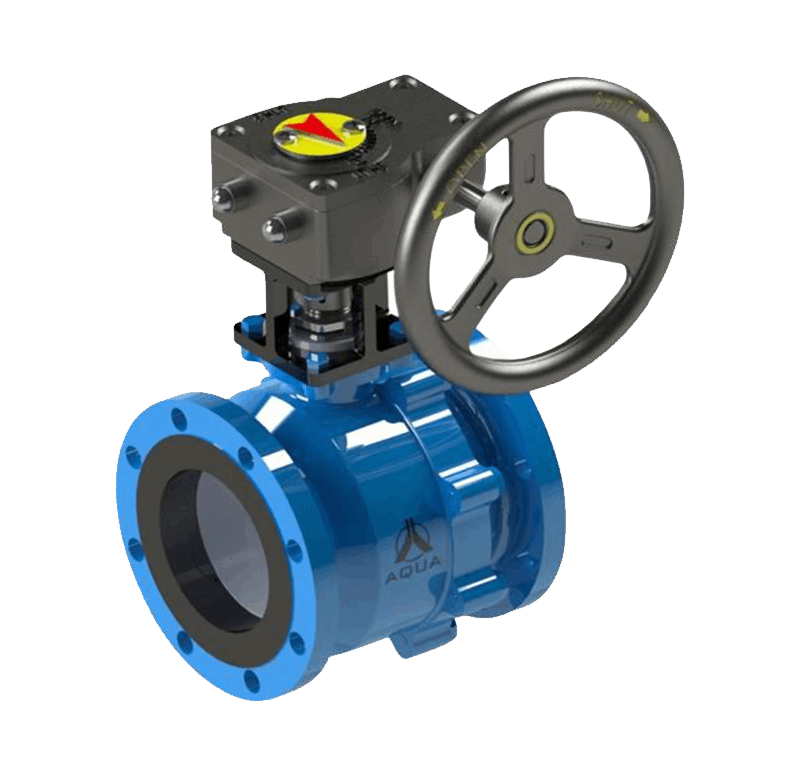

Ball Valves - Floating Two Piece
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 15mm (1/2”) to 200mm (8”)
Type: Regular Bore & Full Bore
Rating: Class 150, 300, 600, 900 & 1500
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M , Duplex SS, Monel, CN7M, H-B, H-C, etc.
Seats: PTFE, RPTFE, PEEK, Metal
Ends: Flanged, Butt Weld
Specials: Stem extension, Short/Long Pattern, Locking Arrangements, Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

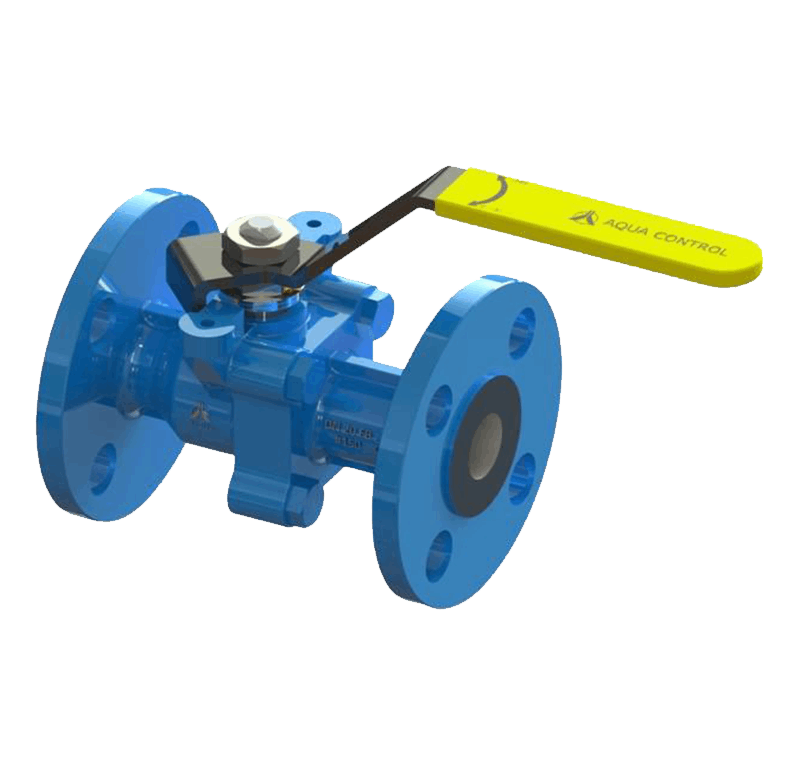

Ball Valves - Two Piece
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 15mm (1/2”) to 200mm (8”)
Type: Regular Bore & Full Bore
Rating: Class 150, 300, 600, 900 & 1500
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, Duplex SS, Monel, CN7M, H-B, H-C, etc
Seats: PTFE, RPTFE, PEEK, Metal
Ends: Flanged, Butt Weld
Specials: Stem Extension, Short/Long Patterns, Locking Arrangements, Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

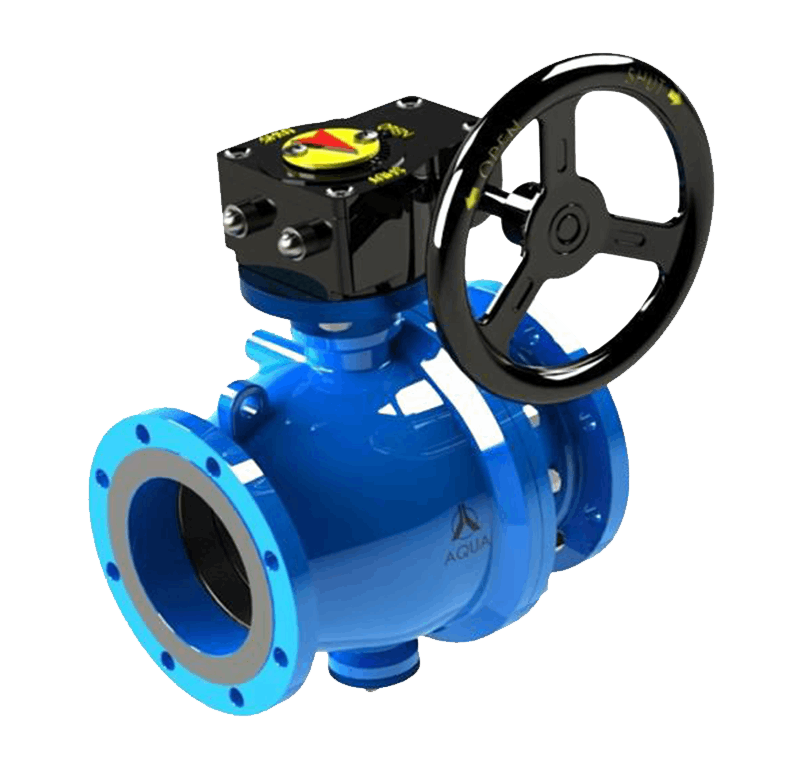

Ball Valves - Trunnion Mounted External Trunnion
Complies to BS EN ISO 17292 (BS 5351), API 6D, API 608
Sizes: 50mm (2”) to 600mm (24”)
Type: Regular Bore & Full Bore
Rating: Class 150, 300 & 600
Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, Duplex SS, Monel, CN7M, H-B, H-C etc.
Seats: PTFE, Reinforced PTFE, Nylon, Devlon, Metal, PEEK
Ends: Flanged, Butt Weld
Specials: Stem Extension, Sealant Injection, DIB-1 & DIB-2, Bonnet Extension, Fire Safe Test Requirements of API 607 & API 6FA
Operation: Manual, Gear, Actuated

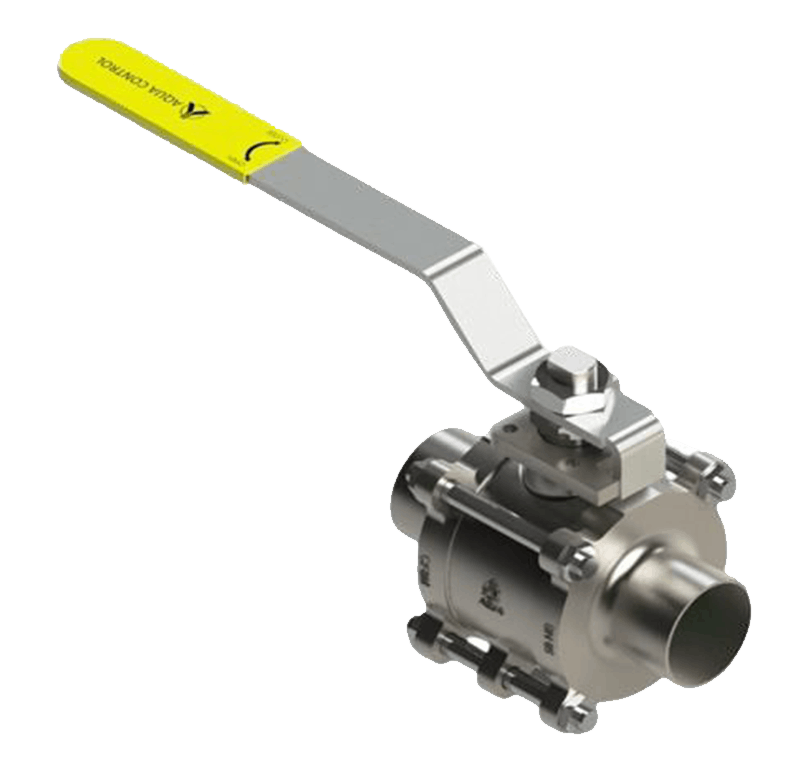

Sanitary Ball Valves - Three Piece
Complies to Manufacturing Standard
Sizes: 15mm (1/2”) to 150mm (6”)
Type: Full Bore
Rating: Class 150
Materials: CF8, CF8M, CF3, CF3M
Seats: PTFE
Ends: ODBW

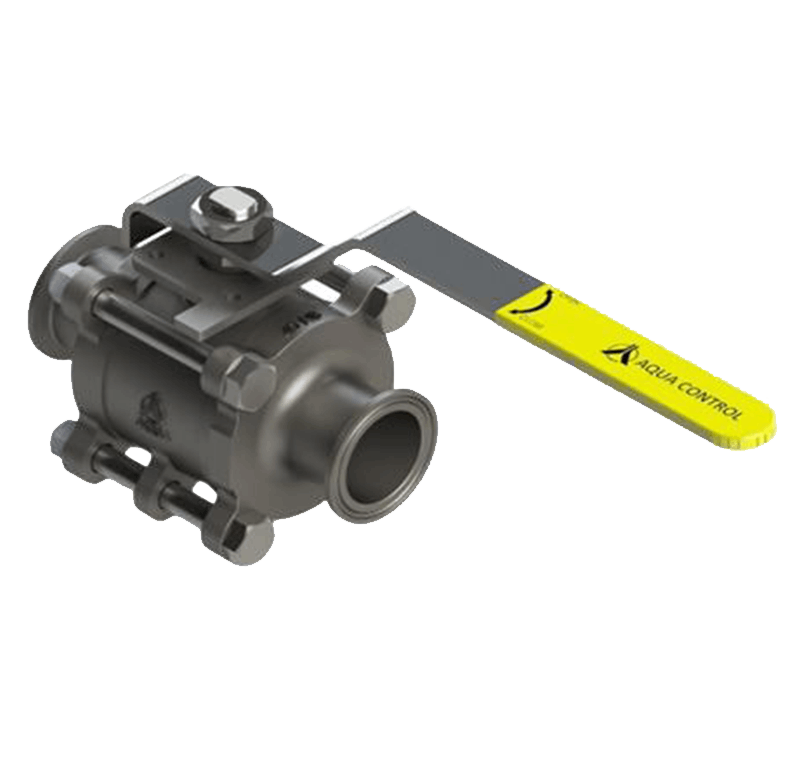

Sanitary Ball Valves - Three Piece
Sanitary Ball Valves – Three Piece
Complies to Manufacturing standard
Sizes: 15mm (1/2”) to 150mm (6”)
Type: Full Bore
Rating: Class 150
Materials: CF8, CF8M, CF3, CF3M
Seats: PTFE
Ends: TRI-CLOVER
